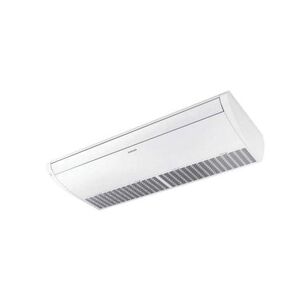

Samsung DVM S Series AM048JNCDCH/AA Heat Pump Indoor Unit, 208 - 230 V, 1.45 A, 1 ph -Phase, High Impact Polystyrene
Samsung DVM S Series AM048JNCDCH/AA Heat Pump Indoor Unit, 208 - 230 V, 1.45 A, 1 ph -Phase, High Impact Polystyrene
Samsung Heat Pump Indoor Unit, Series: DVM S Series, 208 - 230 V, 1.45 A, 60 Hz, 1 ph Phase, 3 Fan Speeds, 48000 Btu/hr Cooling, 54000 Btu/hr Heating, 918 cfm, 1088 cfm, 1286 cfm, Flared Connection, 3/8 in, 5/8 in Connection, R-410A Refrigerant, 38 dBA, 43 dBA, 46 dBA Sound Level, Ceiling Mounting, High Impact Polystyrene, 26-9/16 in Overall Length, 64-15/16 in Overall Width, 9-1/4 in Overall Height, For Use With: DVM S Water and DVM Eco Systems, Additional Information: DVM Classification, 2015 Version, Deluxe Feature
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$5,802.84Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional InformationDVM Classification, 2015 Version, Deluxe Feature
Amperage Rating1.45
BTU Rating48000 Btu/hr Cooling, 54000 Btu/hr Heating
CFM Rating918 cfm, 1088 cfm, 1286 cfm
Connection Size3/8 ", 5/8 "
Connection TypeFlared
Frequency Rating60
MaterialHigh Impact Polystyrene
Mounting TypeCeiling
Number of Fan Speeds3
Overall Height9-1/4
Overall Length26-9/16
Overall Width64-15/16
Phase1
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level38 dBA, 43 dBA, 46 dBA
Suitable For Use WithDVM S Water and DVM Eco Systems
Voltage Rating208 - 230
Additional Information
cETLus Listed|UL 1995
Features & Benefits
- Washable electro-static filter as standard (included with unit) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Power and pipe connections are easily accessible from one side of the unit for simple installation and service Powerful air throw for large areas Fresh air inlet to allow simple introduction of outside ai The heat exchanger shall be mechanically bonded fin to copper tube The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution
Documents
Marketing Information
Samsung has been rewriting product descriptions beyond the industry standards. As one of Samsung's newest products, the Samsung Big Ceiling is focused on sending sufficient amounts of conditioned air to distant places to cover large areas with its long air throw.
Samsung DVM S Series AM048JNCDCH/AA Heat Pump Indoor Unit, 208 - 230 V, 1.45 A, 1 ph -Phase, High Impact Polystyrene
BrandSamsung
MFG #AM048JNCDCH/AA
Keller #991959
My Part ##
Last Ordered#
$5,802.84Â /Â ea
