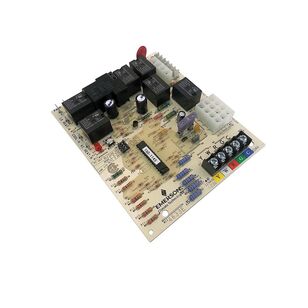

WHITE-RODGERS™ 50M56-743 Nitride Integrated Furnace Control, 25 VAC, 0.45 A, 50/60 Hz
WHITE-RODGERS™ 50M56-743 Nitride Integrated Furnace Control, 25 VAC, 0.45 A, 50/60 Hz
WHITE-RODGERS™ Nitride Integrated Furnace Control, 25 VAC, 0.45 A, 50/60 Hz, Heat: 30 s On, 100/150 s Off, Cool: 6 s On, 45 s Off, 25 s PostPurge Time Delay, 5 to 93% Relative Non-Condensing Humidity Rating, Snap-In Standoffs Mounting, -40 to 176 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$172.99 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
Attributes
BrandWHITE-RODGERS™
Amperage Rating0.45
Frequency Rating50/60
Humidity Rating5 to 93% Relative Non-Condensing
Mounting TypeSnap-" Standoffs
Temperature Rating-40 to 176
Time DelayHeat: 30 s On, 100/150 s Off, Cool: 6 s On, 45 s Off, 25 s PostPurge
Voltage Rating25
Features & Benefits
- System diagnostic LED with fault recall Multi-speed circulator One or two stage gas valve Relay load ratings - 1.5 A at 25 VAC 50/60 Hz 0.6 pico-F valve relay, 6 A at 120 VAC 50/60 Hz (resistive) igniter relay, 2.2 A full load, 3.5 A locked rotor at 120 VAC inducer relay, 14.5 A full load, 25 A locked rotor at 120 VAC circulator relay Flame current requirements - 1 uA DC minimum current to insure flame detection, 0.10 uA DC maximum current for non-detection, 100 Mohm maximum allowable leakage resistance 0.8 sec flame establishing time, 2 sec flame failure response time
WHITE-RODGERS™ 50M56-743 Nitride Integrated Furnace Control, 25 VAC, 0.45 A, 50/60 Hz
BrandWHITE-RODGERS™
MFG #50M56-743
Keller #992560
