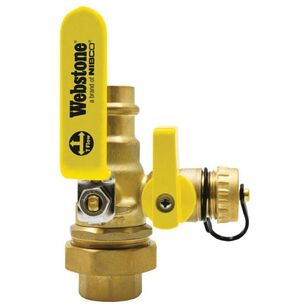

Webstone Union Ball Brain™ Pro-Pal H-x043 Series H-80435W Ball Valve With Single Union End, 1-1/4 in, FNPT Union x Press
Webstone Union Ball Brain™ Pro-Pal H-x043 Series H-80435W Ball Valve With Single Union End, 1-1/4 in, FNPT Union x Press
Webstone Union Ball Brain™ Ball Valve With Single Union End, Pro-Pal® H-x043 Series, 1-1/4 in Nominal, FNPT Union x Press Connection, Full Port, 250 psi, 3/4 in Orifice, 5.2 in Inlet to Outlet Length, 2.63 in Top to Inlet Center, Reversible Handle Operator, DZR Brass Body, PTFE Seat, Brass Stem, EPDM Seal, PTFE Packing, Steel Handle, HCP Brass Ball, Lead-Free, 250 deg F
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$298.50 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandWebstone
Ball MaterialHCP Brass
Body MaterialDZR Brass
Connection TypeFNPT Union x Press
Handle MaterialSteel
Inlet to Outlet Length5.2
Nominal Size1-1/4
Operator TypeReversible Handle
Orifice Size3/4
Packing MaterialPTFE
Port TypeFull
Pressure Rating250
Seal MaterialEPDM
Seat MaterialPTFE
SeriesPro-Pal H-x043 Series
Stem MaterialBrass
Temperature Rating250
Top to Inlet Center2.63
Additional Information
NSF/ANSI 61/372/14
Features & Benefits
- Eliminates assembly needed to isolate and drain any portion of a piped system Reversible handle for added versatility Exclusive adjustable flow path allow for draining from either side of the ball Union connection allows for any system appliance to be easily disconnected for replacement Saves 45 min Replaces six-components Eliminates five-leak paths
Webstone Union Ball Brain™ Pro-Pal H-x043 Series H-80435W Ball Valve With Single Union End, 1-1/4 in, FNPT Union x Press
BrandWebstone
MFG #H-80435W
Keller #994986
