NIBCO MTT-585-70-NS-1/2 BLVLV
NIBCO MTT-585-70-NS-1/2 BLVLV

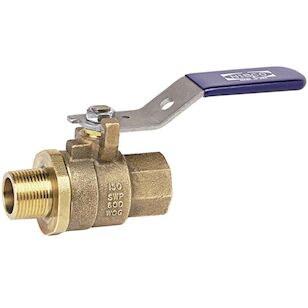

NIBCO®, 1/2 in Nominal, Connection Type: MIPT x FIPT, Full Port, 600 psi CWP, 150 psi SWP, Quarter-Turn NIB-SEAL Percent Extended Insulated Handle Operator, Bronze Body, Silicon Bronze Stem, Reinforced PTFE Seal, Bronze Trim, Brass Ball, Hard Chrome, 5.3 in L x 1.3 in W x 2.5 in H Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$140.10 / ea
Out of Stock
- Attributes
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Ball MaterialBrass
Body MaterialBronze
Color/FinishHard Chrome
Connection TypeMIPT x FIPT
Dimensions5.3 " L x 1.3 " W x 2.5 " H
FinishHard Chrome
IndustryPlumbing
Nominal Size1/2
Operator TypeQuarter-Turn NIB-SEAL Percent Extended Insulated Handle
Port TypeFull
Pressure Rating600 psi CWP, 150 psi SWP
Seal MaterialReinforced PTFE
Stem MaterialSilicon Bronze
Trim MaterialBronze
Shipping Dimensions (L x W x H)6.25" x 3" x 2.81"
Features & Benefits
- Valve pressure rating 600 psi 41.4 bar non-shock cold working pressure Maximum temperature rating 400 degrees F Male x female threaded end connections Chrome plated brass ball, silicon bronze stem Blowout-proof stem Standard lever handle, optional NIB-SEAL pecent Dezincification resistant Use in U.S. drinking water applications is prohibited after January 3, 2014 Conforms to MSS SP-110
Documents
Marketing Information
The NIBCO pecent full port bronze ball valve provides bubble-tight shutoff at 600 PSI. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. The bronze ball valve provides ease of operation with quarter-turn (90 degrees) open to close. Please refer to NIBCO technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO pecent ball valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO pecent ball valves are backed by the NIBCO INC. 5-year 125% limited warranty.
NIBCO MTT-585-70-NS-1/2 BLVLV
BrandNIBCO®
MFG #NL95M06
Keller #996340
