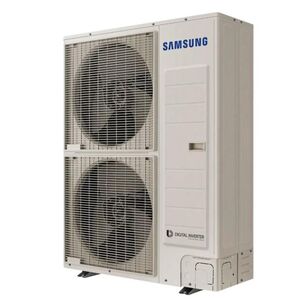

Samsung DVM S ECO Series AM053FXMDCH/AA Heat Pump Condensing Unit, 208 - 230 V, 25.6 A Cooling, 26.1 A Heating, Steel
Samsung DVM S ECO Series AM053FXMDCH/AA Heat Pump Condensing Unit, 208 - 230 V, 25.6 A Cooling, 26.1 A Heating, Steel
Samsung Heat Pump Condensing Unit, DVM S ECO Series, 208 - 230 V, 25.6 A Cooling, 26.1 A Heating, 125 W, 60 Hz, 1 ph, 61000 Btu/hr Heating, 53000 Btu/hr Cooling, 3885 cfm Heating CFM Rating, 9.45, 10.3 EER Rating, 15.5, 18.5 SEER, 8.6, 8.8 HSPF, Brazed Connection, Twin BLDC Rotary X1 Compressor, R-410A Refrigerant, 3/8 in Liquid Line, 3/4 in Suction Line, 50 A Fuse Rating, Inverter Drive, Tonnage: 5 ton, 51 dBA Heating Sound Level, Steel, Baked-On Powder-Coated/Galvanized, -4 to -75 deg F Heating Operating Temperature, 0 to 118 deg F Cooling Operating Temperature, 13 in Overall Length, 37 in Overall Width, 47-5/8 in Overall Height, For Use With: Samsung DVM S Indoor Units, Additional Information: 2013 Version, Outdoor Unit, Standard + General Temp + Non Module Feature, Heat Pump Mode
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$7,784.64Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information2013 Version, Outdoor Unit, Standard + General Temp + Non Module Feature, Heat Pump Mode
Amperage Rating25.6 A Cooling, 26.1 A Heating
Compressor TypeTwin BLDC Rotary X1
Connection TypeBrazed
Cooling BTU Rating53000
Cooling Operating Temperature0 to 118
Drive TypeInverter
EER Rating9.45, 10.3
FinishBaked-On Powder-Coated/Galvanized
Frequency Rating60
Fuse Rating50
Heating BTU Rating61000
Heating CFM Rating3885
Heating Operating Temperature-4 to -75
Heating Sound Level51
HSPF Rating8.6, 8.8
IndustryHVAC
Liquid Line Size3/8
MaterialSteel
Overall Height47-5/8
Overall Length13
Overall Width37
Phase1
Power Rating125
Refrigerant TypeR-410A
SEER Rating15.5, 18.5
SeriesDVM S Eco Series
Suction Line Size3/4
Suitable For Use WithSamsung DVM S Indoor Units
Tonnage5
Voltage Rating208 - 230
Additional Information
ETL Listed|UL 1995
Features & Benefits
- Refrigerant pipe connections inside unit chassis with penetrations available on front, back, right, and bottom sides for versatile installation The heat exchanger shall be mechanically bonded fin to copper tube The unit shall be operated via NASA Protocol with controls provided by Samsung Controls shall integrate with Samsung central controls without additional interface modules The unit shall integrate with the Samsung NASA Controls Network Solution The compressors shall be Samsung hermetically sealed, inverter driven, twin BLDC Rotary type Refrigerant flow shall be controlled by EEV (electronic expansion valve) throughout the system A flat plate subcooler device will improve capacity at extreme system refrigerant pipe lengths and reduce refrigerant noise
Documents
Marketing Information
With its superior design, DVM S Eco offers a comforting environment undisturbed by bothersome noise levels typical of standard air conditioning systems. DVM Eco can support connection of up to ten indoor units (depending on capacity).
