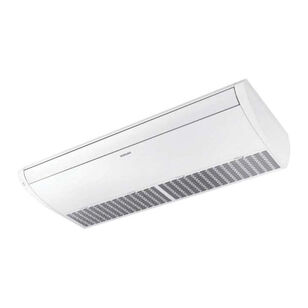

Samsung DVM S Series AM036JNCDCH/AA Indoor Unit, 208-230 V, 0.9 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU, HIPS
Samsung DVM S Series AM036JNCDCH/AA Indoor Unit, 208-230 V, 0.9 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU, HIPS
Samsung Indoor Unit, DVM S Series, Model: AM036JNC, 208-230 V, 0.9 A, 10.55 kW, 11.72 kW, 60 Hz, 1 ph Phase, 3 Fan Speeds, 36000 Btu/hr Cooling, 40000 Btu/hr Heating, 1035 cfm, Connection Type: Flared, 3/8 in, 5/8 in Connection, R-410A Refrigerant, 15 A Fuse Rating, 45 dBA Sound Level, Ceiling Mounting, HIPS, White, 53-1/8 in Overall Length, 26-9/16 in Overall Width, 9-1/4 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,689.36Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating0.9
BTU Rating36000 Btu/hr Cooling, 40000 Btu/hr Heating
CFM Rating1035
ColorWhite
Connection Size3/8 ", 5/8 "
Connection TypeFlared
Frequency Rating60
Fuse Rating15
MaterialHIPS
ModelAM036JNC
Mounting TypeCeiling
Number of Fan Speeds3
Overall Height9-1/4
Overall Length53-1/8
Overall Width26-9/16
Phase1
Power Rating10.55 kW, 11.72 kW
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level45
Voltage Rating208-230
Additional Information
cETLus Listed
Features & Benefits
- Compatible with Samsung DVM S, DVM S Water, and DVM Eco systems (AM**********AA). Washable electro-static filter as standard (included with unit) High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection. Power and pipe connections are easily accessible from one side of the unit for simple installation and service. Powerful air throw for large areas Fresh air inlet to allow simple introduction of outside air. HIPS chassis certified to UL94 V0 with a galvanized steel base. The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan shall be sirocco type (4) Three fan speed settings and auto setting The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution Controls shall integrate with a BMS system Control wiring shall be 2 X 16 AWG shielded wire
Samsung DVM S Series AM036JNCDCH/AA Indoor Unit, 208-230 V, 0.9 A, 36000 Btu/hr Cooling, 40000 Btu/hr Heating BTU, HIPS
BrandSamsung
MFG #AM036JNCDCH/AA
Keller #996943
