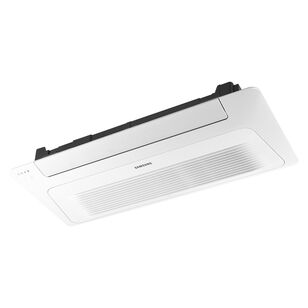

Samsung WindFree™ DVM S Series AM007NN1DCH/AA 1-Way Cassette Indoor Unit, 208 to 230 V, 0.23 A, 1 ph, Polystyrene
Samsung WindFree™ DVM S Series AM007NN1DCH/AA 1-Way Cassette Indoor Unit, 208 to 230 V, 0.23 A, 1 ph, Polystyrene
Samsung WindFree™ 1-Way Cassette Indoor Unit, DVM S Series, 208 to 230 V, 0.23 A, 40 W, 60 Hz, 1 ph Phase, 3 Fan Speeds, 7500 Btu/hr Cooling, 8500 Btu/hr Heating, 212 cfm High, 176 cfm Medium, 141 cfm Low, Connection Type: Flared, 1/4 in Liquid, 1/2 in Suction Connection, R-410A Refrigerant, 29 dBA High, 24 dBA Low Sound Level, Polystyrene, 16-1/8 in Overall Length, 38-1/4 in Overall Width, 5-3/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,683.72 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Amperage Rating0.23
BTU Rating7500 Btu/hr Cooling, 8500 Btu/hr Heating
CFM Rating212 cfm High, 176 cfm Medium, 141 cfm Low
Connection Size1/4 " Liquid, 1/2 " Suction
Connection TypeFlared
Correct Item GroupOther Mini Split Indoor
Frequency Rating60
IndustryHVAC
MaterialPolystyrene
Number of Fan Speeds3
Overall Height5-3/8
Overall Length16-1/8
Overall Width38-1/4
Phase1
Power Rating40
Refrigerant TypeR-410A
SeriesDVM S Series
Sound Level29 dBA High, 24 dBA Low
Voltage Rating208 to 230
Additional Information
cETLus Listed|UL 1995
Features & Benefits
- Compatible with Samsung DVM S, DVM S Water and DVM Eco systems (AM/AA) Electro-static, washable, pleated filters as standard (included with fascia panel) Built-in condensate pump with maximum 29 in lift from the bottom of the unit, check valve and float switch that disables indoor unit during overflow detection Fascia panel shall have LED indicator lights and a motorized louver High-voltage terminal block temperature sensor to disable unit in the event of power connection overheating WindFree™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The WindFree™ feature is optional and can be enabled using central or local control options (MWRSH11UN, MWR-WE13UN, MWR-WG00-N and AR-EH03U only) The WindFree™ one-way cassette can be configured for two-stage operation, cooling the space with the louver open (fixed or swing) until the room temperature nears set temperature. Once room temperature is near set temperature, WindFree™ operation will start automatically, closing the louver and using the face of the fascia panel to gently cool the space with still air The WindFree™ panel (PC1NWFMUN) has an integral humidity sensor that will open the louvers for standard cool mode when space conditions could potentially cause condensation formation on the panel surface Insulated, HIPS chassis and fascia panel certified to UL94 V0 The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single crossflow type Three fan speed settings and auto-setting The unit shall be operated via a wireless or wired remote control with DDC type signal Control wiring shall be 2 x 16 AWG shielded wire
Documents
Marketing Information
Samsung's WindFree™ 1-way cassette uses thousands of micro-holes to distribute air throughout the space without blowing directly on the occupants. You can activate WindFree™ cooling by pressing the WindFree™ button on the controller.
Samsung WindFree™ DVM S Series AM007NN1DCH/AA 1-Way Cassette Indoor Unit, 208 to 230 V, 0.23 A, 1 ph, Polystyrene
BrandSamsung
MFG #AM007NN1DCH/AA
Keller #999031
My Part ##
Last Ordered#
$1,683.72 / ea
