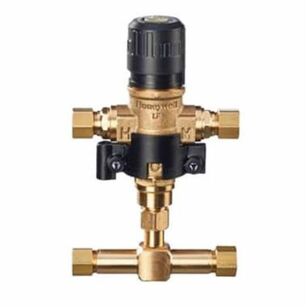

Honeywell UMV Series UMV500-LF/U Thermostatic Mixing Valve, 3/8 in, Compression, 0.52 to 4.3 gpm, 20 to 125 psi, Brass
Honeywell UMV Series UMV500-LF/U Thermostatic Mixing Valve, 3/8 in, Compression, 0.52 to 4.3 gpm, 20 to 125 psi, Brass
Honeywell Thermostatic Mixing Valve, UMV Series, 3/8 in Nominal, Compression Connection, Number of Ports/Ways: 3-Port, 0.52 to 4.3 gpm Flow Rate, 20 to 125 psi, 0.36 Cv Flow Coefficient (Cv), EPDM Seal, Brass, 3-5/32 in Top to Inlet Center, Lead-Free, 39 to 80 deg F Cold, 120 to 180 deg F Hot
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$262.85Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandHoneywell
Connection TypeCompression
Flow Coefficient (Cv)0.36
Flow Rate0.52 to 4.3
MaterialBrass
Nominal Size3/8
Number of Ports/Ways3-Port
Pressure Rating20 to 125
Seal MaterialEPDM
SeriesUMV Series
Temperature Rating39 to 80 deg F Cold, 120 to 180 deg F Hot
Top to Inlet Center3-5/32
Additional Information
ASSE 1070|CSA Certified|NSF 61/372|IAPMO Listed|UPC Certified
Features & Benefits
- The UMV500-LF/U is used to prevent accidental scalding The outlet water temperature must be properly adjusted by the installer using a thermometer to measure the outlet temperature at the faucet A maximum outlet temperature of 110 deg F is recommended Stainless steel spring Pressure difference between hot and cold inlets shall be less than 20% Integral check valves in both hot and cold ports The hot inlet temperature must be at least 50 deg F higher and cold inlet temperature must be at least 50 deg F lower than the mixed outlet temperature Universal design allows flexibility in adapting to three-port or four port applications Shipped with four port adapter Shipped with mounting bracket for easy-mounting Integral check valves in hot and cold inlets Lockable hand wheel for tamper-resistant temperature setting Four port adapter and mounting bracket included
Documents
Honeywell UMV Series UMV500-LF/U Thermostatic Mixing Valve, 3/8 in, Compression, 0.52 to 4.3 gpm, 20 to 125 psi, Brass
BrandHoneywell
MFG #UMV500-LF/U
Keller #999061
