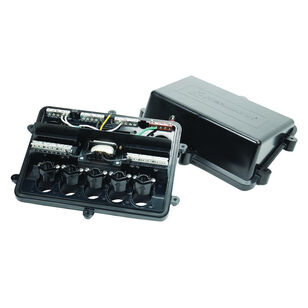

Intermatic® COMBOConnect™ PJBX52100 5-Light Connection Junction Box, 8 in W, 5 in H, 6 in D, Plastic
Intermatic® COMBOConnect™ PJBX52100 5-Light Connection Junction Box, 8 in W, 5 in H, 6 in D, Plastic
Intermatic® 5-Light Connection Junction Box, 120/12/13 VAC, 1 A, 4 AWG Maximum Cable, Bracket, Post, Rod, Wall Mounting, Plastic, Black, 8 in Width, 5 in Height, 6 in Depth, Additional Information: 1/2 to 1 in Conduit Size, 60 Hz Frequency Rating, 2 Input Ports, 5 Output Ports, 100 W Lamp
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
Call for Price / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandIntermatic®
Additional Information1/2 to 1 " Conduit Size, 60 Hz Frequency Rating, 2 Input Ports, 5 Output Ports, 100 W Lamp
Amperage Rating1
ApplicationFor landscape lighting, underwater lighting, commercial and residential use
ColorBlack
Depth6
Height5
Includes(1) 100 W Junction Box Transformer, (5) Conduit Plugs, (7) 1/2 to 3/4 in Conduit Reducer Bushings, (5) Cord Strain Relief, (16) Cover and Strain Relief Screws
IndustryLeisure
ItemBodyMaterial_enPlastic
ItemMarket_enCommercial, Residential
ItemMountingOptions_enBracket, Post, Rod, Wall
ItemNonMetallicConduitSize_en1/2", 3/4", 1"
ItemNumberOfLightConnections_en5
ItemProductDepthIn6
ItemProductDepthMm152.4
ItemProductHeightIn5
ItemProductHeightMm127
ItemProductWidthIn8
ItemProductWidthMm203.2
MaterialPlastic
Maximum Cable Size4
Mounting TypeBracket, Post, Rod, Wall
Voltage Rating120/12/13
Warranty1 Year Limited
Width8
Shipping Dimensions (L x W x H)12.25" x 9.25" x 4.75"
Additional Information
cCSAus Certified|NEC 680.24
Features & Benefits
- The COMBOConnect™ solution combines the simplicity of a standard connection box with the power of a low voltage transformer of 100 W Patented design that combines a standard junction box with a built-in transformer Two high voltage openings (one for inlet power, one to daisy chain to other J-boxes), five low voltage openings (one more than typical larger junction boxes to better accommodate nicheless lights) Built-in electronic noise reduction Unit is 20% smaller than standard junction box and transformer components Connections are designed to be easily accessible Uses insulated terminals for wiring connections
Marketing Information
The COMBOConnect® solution combines the simplicity of a standard connection box with the power of a low-voltage transformer of 100 W.
