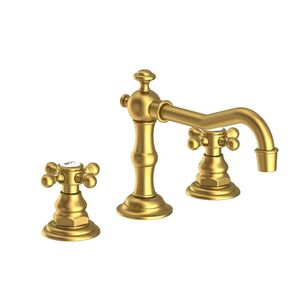

NEWPORT BRASS® Chesterfield 930-04 Lavatory Faucet, 2-Handle, Deck, Widespread, Pop-Up, PVD Satin Brass
NEWPORT BRASS® Chesterfield 930-04 Lavatory Faucet, 2-Handle, Deck, Widespread, Pop-Up, PVD Satin Brass
NEWPORT BRASS® Lavatory Faucet, Chesterfield Collection, Model: 930, Faucet Configuration: Widespread, Deck Mounting, 3-Hole Faucet Hole Compatibility, Manufacturer Finish: PVD Satin Brass, 8 to 20 in Faucet Center, 2-Handle Handles, Cross Handle Style, Brass Handle, PVD Satin Brass Handle, Brass Body, 1.2 gpm Flow Rate, 3.28 in Spout Height, 6.96 in Spout Reach, Ceramic Disc, 1.8 in Maximum Deck Thickness, 1/2 in Connection, NPSM Connection, Pop-Up Drain, Components Included: Drain|Handles|Supply Line|Valve, Low Lead Low Lead, ADA Compliant, Additional Information: 6.03 in H x 8.68 in W Dimensions
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,697.00 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNEWPORT BRASS®
Additional Information6.03 " H x 8.68 " W Dimensions
Body MaterialBrass
CollectionChesterfield
Color/FinishPVD Satin Brass
Components IncludedDrain|Handles|Supply Line|Valve
Connection Size1/2
Connection TypeNPSM
Drain TypePop-Up
Faucet Center8 to 20
Faucet ConfigurationWidespread
Faucet Hole Compatibility3-Hole
FinishPVD Satin Brass
Finish FamilyBrass Tones
Flow Rate1.2
Handle FinishPVD Satin Brass
Handle MaterialBrass
Handle StyleCross
Low Lead CompliantLow Lead
Map1187.90
Maximum Deck Thickness1.8
Model930
Mounting TypeDeck
Number of Handles2-Handle
Spout Height3.28
Spout Reach6.96
Valve/Cartridge TypeCeramic Disc
Shipping Dimensions (L x W x H)18" x 12" x 3"
Additional Information
ASME A112.18.1|CEC Certified|CSA B125.1-18|cUPC Certified|Energy Policy Act 1992|EPA WaterSence Certified|IAPMO Certified|ICC/ANSI A117.1|IPC Certified|NSF/ANSI 372|NSF/ANSI 61 Section 9|US Federal and State Material Regulations Approved
Features & Benefits
- Available in more than 20 decorative finishes Solid brass construction ADA Compliant Brass Valve bodies Valve Included Quarter-turn washerless ceramic disc valve cartridges Spout assembly with integral supply hoses Pop-up drain with tailpiece 3.28" (8.3 cm) spout height at outlet 6.96" (17.7 cm) spout reach (c-c) For 8" (20.3 cm) centers - Maximum 20" (50.8 cm) 1.2 GPM (4.5 LPM) Max
Documents
Marketing Information
A tribute to Victorian artistry, the Chesterfield Collection celebrates the era's admiration for elegant ornamentation, drawing on metalworking techniques of the period. Crafted with baluster-like shapes and curves reminiscent of 19th-Century candelabras, the rounded nodes and narrow waists create a rhythmic profile with sculptural presence. Widespread styles are also available, balancing practicality with old world charm. As its name suggests, each style in this collection is inspired by a lineage of refinement and timeless craft.
NEWPORT BRASS® Chesterfield 930-04 Lavatory Faucet, 2-Handle, Deck, Widespread, Pop-Up, PVD Satin Brass
BrandNEWPORT BRASS®
MFG #930-04
Keller #1083940
My Part ##
Last Ordered#
$1,697.00 / ea
