ASME A112.18.1|ASSE 1010|ASTM E814|CAN/ULC S115|CSA B125.1|cUPC Certified|cWHus Intertek Listed|IAPMO Certified|NSF/ANSI 61/372|UL 1479

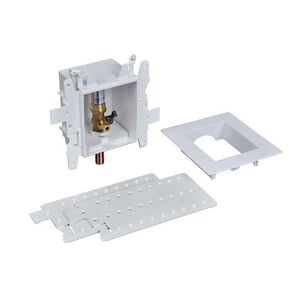

• MODA® compact-size, fire-rated ice maker outlet box Infinite configuration options for easy, flexible installation Two-piece valve design for easy repair or replacement without damaging drywall Advanced snap-lock design allows for easy assembly/disassembly and connection to another MODA box Contains (1) 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that accommodate on-stud and straddle-stud installation Separate valve and drain boxes allow paired or split boxes between walls or stud bays to prevent supply/drain crossovers; valves rated to 150 PSI air and 250 PSI water Durable PVC box construction stands up to the roughest jobsite conditions Box dimensions: 8 in. W x 4.85 in. H x 3.38 in. D; box opening dimensions: 3.82 in. W x 4.367 in. H Faceplate dimensions: 6 in. W x 6.45 in. H Listed to Warnock Hersey to meet ASTM E-814 and UL 1479 for both 1-hour and 2-hour wood and steel stud wall installations; listed with Massachusetts Board of Plumbing

The MODA® Supply Box System is a compact, universal single-box platform that combines extensive mounting configuration options with innovative engineering, simplifying outlet box installation for plumbing contractors. One universal faceplate is compatible with all box types, and boxes easily snap to one another with common brackets. Available in a variety of configurations in standard and fire-rated options, MODA Ice Maker Supply Boxes include one 1/4 in. outer diameter compression valve pre-installed in a PVC box with interlocking wing flanges that allow for on-stud and straddle-stud installations. Oatey products have earned the trust of plumbing professionals for over 100 years.
