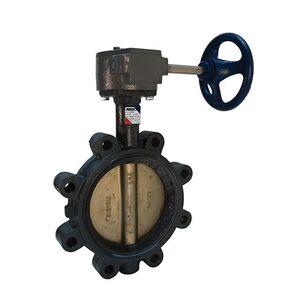

NIBCO® LD-2000_3 Butterfly Valve With Lever and Throttle Plate, 3 in, Lug, Iron, 200 psi
NIBCO® LD-2000_3 Butterfly Valve With Lever and Throttle Plate, 3 in, Lug, Iron, 200 psi
NIBCO® Butterfly Valve With Lever and Throttle Plate, 3 in Nominal, Lug Connection, 200 psi, Pressure Class: 125 lb, 150 lb, Water Media, Lever Actuator, Iron Body, EPDM Seat, Stainless Steel Stem, EPDM Seal, Aluminum/Bronze Disc, EDPM Softgoods, Quarter-Turn, Standard Operator, 225 deg F, Material Standard: ASTM A582, ASTM A536, ASTM B148, ASTM B16, CDA 122, Lead-Free
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$716.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeLever
Body MaterialIron
Connection TypeLug
Disc MaterialAluminium/Bronze
IndustryPlumbing
Lead-FreeYes
Material StandardASTM A582, ASTM A536, ASTM B148, ASTM B16, CDA 122
MediaWater
Nominal Size3
Operator TypeQuarter-Turn, Standard
Pressure Class125 lb, 150 lb
Pressure Rating200
Seal MaterialEPDM
Seat MaterialEPDM
Softgoods MaterialEDPM
Stem MaterialStainless Steel
Temperature Rating225
Warranty5 Year Limited
Additional Information
ANSI 61-8/372|API-609 Specified|MSS SP-67|NSF 61-8/372|Vermont Act 193
Features & Benefits
- Bare stem, infinite position plate and lock, lever lock, manual gear operator and pneumatic/electric automation
Marketing Information
The NIBCO® lug-type butterfly valve provides bi-directional dead end service without a downstream flange and bubble tight shut-off at 200 psi. The valve is ideal for commercial and some light industrial process applications, including HVAC and vacuum services, in addition to hot and cold potable water. The NIBCO® ductile iron lug butterfly valve provides ease of operation with quarter-turn (90 deg) open to close. With the internal stem/disc geometric drive design, there is no need for pins or bolts that may create leak paths or turbulence in the waterway. An extended neck allows for insulation up to 2 in. The unique molded in EPDM seat liner with aluminum bronze disc is recommended for most water applications. NIBCO® butterfly valves are backed by the NIBCO® 5 year 125% limited warranty.
NIBCO® LD-2000_3 Butterfly Valve With Lever and Throttle Plate, 3 in, Lug, Iron, 200 psi
BrandNIBCO®
MFG #NLG100F
Keller #156270
