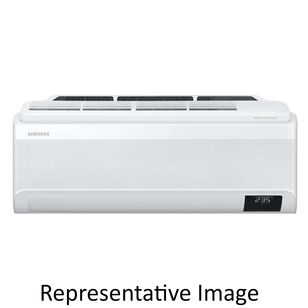

Samsung WindFree™ 3.0i AR09CSKCPWKNCV Standard Evaporator Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS
Samsung WindFree™ 3.0i AR09CSKCPWKNCV Standard Evaporator Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS
Samsung Standard Evaporator Indoor Unit, 208 to 230 V, 0.3 A, 30 W, 60 Hz, 1 ph, 3 Fan Speeds, 9000 Btu/hr Cooling, 11000 Btu/hr Heating, 297 to 413 cfm Cooling, 328 to 445 cfm Heating, 13 EER Rating, 20 SEER, 8.3 HSPF, Connection Type: Flared, 12 A Fuse Rating, Tonnage: 0.75 ton, 37 dBA Sound Level, Wall Mounting, HIPS, White, 61 to 90 deg F, 8-7/16 in Overall Length, 32-5/16 in Overall Width, 13-9/16 in Overall Height, For Use With: Multi-Zone Outdoor Units, Additional Information: R-410A Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$815.40 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional InformationR-410A Refrigerant Type
Amperage Rating0.3
BTU Rating9000 Btu/hr Cooling, 11000 Btu/hr Heating
CFM Rating297 to 413 cfm Cooling, 328 to 445 cfm Heating
ColorWhite
Connection TypeFlared
Correct Item GroupWall Mounted Indoor Units
EER Rating13
Frequency Rating60
Fuse Rating12
HSPF Rating8.3
MaterialHIPS
Mounting TypeWall
Number of Fan Speeds3
Overall Height13-9/16
Overall Length8-7/16
Overall Width32-5/16
Phase1
Power Rating30
SEER Rating20
Sound Level37
Suitable For Use WithMulti-Zone Outdoor Units
Temperature Rating61 to 90
Tonnage0.75
Voltage Rating208 to 230
Additional Information
ETL Listed|UL 60335-2-40
Features & Benefits
- The indoor unit shall feature WindFree™ mode. In cooling mode, as room temperature nears set temperature, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit preventing cold air drafts on occupants The indoor unit shall be capable of sensing dust particulate matter in the air stream, and displaying the appropriate measured data on the unit's display The indoor unit shall have Wi-Fi capability as standard Indoor unit chassis shall be UL94 V0 with a galvanized steel mounting bracket The indoor unit shall have easy-access to wire, pipe, and drain connections via access panel on the bottom of the unit for simple installation and service The heat exchangers shall be mechanically bonded fin to copper tube The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The indoor fan shall be a single, antibacterial cross-flow type Three fan speed settings and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The system shall have a built in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app (Android, iOS) Dual set temperature support when connected to MWR-WG00UN Advanced Wired Controller The indoor unit shall have a simple connection for overflow detection devices or any other normally closed contact for simple unit shutdown The indoor unit shall ship with a wireless controller, holder, and batteries Wired controller options available Samsung central control compatible (MIM-R10UN accessory required) Interconnect control wire between outdoor and indoor units shall be 16AWG X 2 System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller Eco Mode to reduce energy consumption during low demand operation
