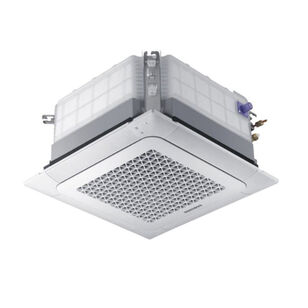

Samsung WindFree™ AC009DNNDCG/AA 4-Way Mini Cassette Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS/Polypropylene
Samsung WindFree™ AC009DNNDCG/AA 4-Way Mini Cassette Indoor Unit, 208 to 230 V, 0.3 A, 1 ph Phase, HIPS/Polypropylene
Samsung 4-Way Mini Cassette Indoor Unit, 208 to 230 V, 0.3 A, 1.46 kW Cooling, 1.75 kW Heating, 60 Hz, 1 ph, 3 Fan Speeds, 9100 Btu/hr Cooling, 10000 Btu/hr Heating, 212 to 283 cfm, 4.1 EER Rating, 22 SEER, 10.6 HSPF, Connection Type: Flared, 3/8 x 1/4 in Connection, R-32 Refrigerant, Tonnage: 0.76 ton, 31 dBA Sound Level, HIPS/Polypropylene, 64 to 90 deg F Cooling, 86 deg F Heating, 22-5/8 in Overall Length, 22-5/8 in Overall Width, 9-13/16 in Overall Height, For Use With: Multi-Zone Systems, Additional Information: 3/8 in Gas Pipe Size, 1/4 in Liquid Pipe Size, 24-3/8 in L x 24-3/8 in W x 2-3/8 in H Fascia Panel
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,554.12 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Additional Information3/8 " Gas Pipe Size, 1/4 " Liquid Pipe Size, 24-3/8 " L x 24-3/8 " W x 2-3/8 " H Fascia Panel
Amperage Rating0.3
BTU Rating9100 Btu/hr Cooling, 10000 Btu/hr Heating
CFM Rating212 to 283
Connection Size3/8 x 1/4
Connection TypeFlared
Correct Item GroupOther Mini Split Indoor
EER Rating4.1
Frequency Rating60
HSPF Rating10.6
IndustryHVAC
MaterialHIPS/Polypropylene
Number of Fan Speeds3
Overall Height9-13/16
Overall Length22-5/8
Overall Width22-5/8
Phase1
Power Rating1.46 kW Cooling, 1.75 kW Heating
Refrigerant TypeR-32
SEER Rating22
Sound Level31
Suitable For Use WithMulti-Zone Systems
Temperature Rating64 to 90 deg F Cooling, 86 deg F Heating
Tonnage0.76
Voltage Rating208 to 230
Additional Information
cETLus Listed|UL 60335-2-40
Features & Benefits
- The indoor unit shall feature WindFree™ mode. When activated in cooling mode, the unit will close its louver and will disperse air into the space through thousands of micro-holes on the front of the indoor unit, preventing cold air drafts on occupants The indoor unit shall have an integral condensate pump with maximum 29" lift from bottom of the unit with check valve and float switch to disable unit in the event of condensate overflow The indoor unit fascia panel shall have a built-in Wi-Fi adapter as standard to allow control and monitoring using the Samsung SmartThings app The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG Insulated, HIPS chassis and fascia panel certified to UL94 V0 The indoor unit shall include a knock-out for outside air capability (booster fan connection) The heat exchanger shall be mechanically boded aluminum fin to copper tube Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The system shall include an R32 alarm output plug on the indoor unit and outdoor unit for notification of R32 leak detection when the indoor unit refrigerant leak detector detects a refrigerant leak (MIM-B14U accessory is required) Three fan speed settings and auto settings Washable filter as standard Fascia panel shall have LED display, infrared receiver, and motorized louvers The WindFree™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants The WindFree™ feature is optional and can be enabled using central or local control options The unit shall be operated via a wireless or wired remote control with DDCtype signal (purchased separately) Dual set temperature support when connected to supported controllers External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings includes outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIMB14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required)
