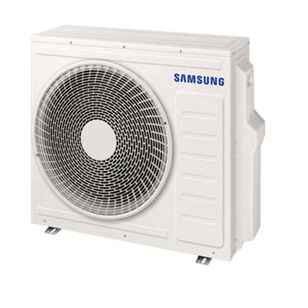

Samsung FJM Series AJ024DXJ3CG/AA Standard Condensing Outdoor Unit, 208 to 230 V, 7.7 A Cooling, 7.7 A Heating, Steel
Samsung FJM Series AJ024DXJ3CG/AA Standard Condensing Outdoor Unit, 208 to 230 V, 7.7 A Cooling, 7.7 A Heating, Steel
Samsung Standard Condensing Outdoor Unit, FJM Series, 208 to 230 V, 7.7 A Cooling, 7.7 A Heating, 125 W, 60 Hz, 1 ph, 25000 Btu/hr Heating, 22000 Btu/hr Cooling, 1678 cfm Heating CFM Rating, 1678 cfm Cooling CFM Rating, 11.7 Ducted, 12.2 Mixed, 12.7 Non-Ducted EER Rating, 19 Ducted, 20.75 Mixed, 22.5 Non-Ducted SEER, 8.6 Ducted, 9.05 Mixed, 9.5 Non-Ducted HSPF, BLDC Inverter Driven Twin Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 1/2 in, 3/8 in Suction Line, 25 A Fuse Rating, Inverter Drive, Tonnage: 1.83 ton, 51 dBA Heating Sound Level, 48 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, 5 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 31-7/16 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$4,149.36Â /Â ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating7.7 A Cooling, 7.7 A Heating
Compressor TypeBLDC Inverter Driven Twin Rotary
Cooling BTU Rating22000
Cooling CFM Rating1678
Cooling Operating Temperature14 to 115
Cooling Sound Level48
Correct Item GroupMulti Zone Outdoor Units
Drive TypeInverter
EER Rating11.7 Ducted, 12.2 Mixed, 12.7 Non-Ducted
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Heating BTU Rating25000
Heating CFM Rating1678
Heating Operating Temperature5 to 75
Heating Sound Level51
HSPF Rating8.6 Ducted, 9.05 Mixed, 9.5 Non-Ducted
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Overall Height31-7/16
Overall Length12-3/16
Overall Width34-5/8
Phase1
Power Rating125
Refrigerant TypeR-32
SEER Rating19 Ducted, 20.75 Mixed, 22.5 Non-Ducted
SeriesFJM Series
Suction Line Size1/2 ", 3/8 "
Tonnage1.83
Voltage Rating208 to 230
Additional Information
AHRI Certified|cETLus Listed|ENERGY STAR Certified|UL 60335-2-40
Features & Benefits
- Auto-restart after power loss Available maximum current setting option to reduce operating current System energy consumption can be viewed using the Samsung SmartThings mobile app (not revenue grade, for reference only) Soft-start to reduce current demand during compressor start The outdoor unit shall supply power individually to the indoor units via 14 AWG X 3 power wire The outdoor unit shall be galvanized steel with a baked-on powder coated finish for durability The heat exchanger shall be mechanically bonded fin to copper tube The system shall utilize low-GWP R-32 refrigerant Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The system shall include an R32 alarm output plug on indoor units with refrigerant leak detectors and outdoor unit for notification of R32 leak detection when refrigerant leak detectors are installed and configured (MIM-B14U accessories are required) Control signal shall be a DDC type signal Interconnect control wire between outdoor and indoor units shall be 16AWG X 2 The system shall integrate with the Samsung Central Controls solution
