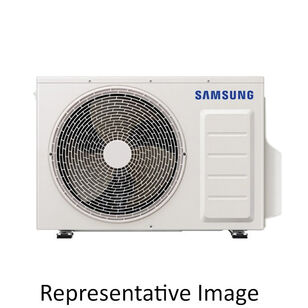

Samsung WindFree™ AR15DXFAMWKXCV Standard Heat Pump Outdoor Unit, 208 to 230 V, 8 A Cooling, 10.1 A Heating, 1 ph
Samsung WindFree™ AR15DXFAMWKXCV Standard Heat Pump Outdoor Unit, 208 to 230 V, 8 A Cooling, 10.1 A Heating, 1 ph
Samsung WindFree™ Standard Heat Pump Outdoor Unit, 208 to 230 V, 8 A Cooling, 10.1 A Heating, 1.8 kW Cooling, 2.3 kW Heating, 60 Hz, 1 ph, 3 Fan Speeds, 15000 Btu/hr Heating, 15000 Btu/hr Cooling, 445 to 586 cfm Heating CFM Rating, 445 to 586 cfm Cooling CFM Rating, 12.95 EER Rating, 21.5 SEER, 10 HSPF, Flared Connection, Inverter Driven BLDC Rotary Compressor, R-32 Refrigerant, 1/4 in Liquid Line, 1/2 in Suction Line, 25 A Fuse Rating, Inverter Drive, 51 dBA Heating Sound Level, 51 dBA Cooling Sound Level, Steel, Galvanized/Powder-Coated, -5 to 75 deg F Heating Operating Temperature, 14 to 115 deg F Cooling Operating Temperature, 12-3/16 in Overall Length, 34-5/8 in Overall Width, 25-1/8 in Overall Height
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$1,713.96 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
Attributes
BrandSamsung
Amperage Rating8 A Cooling, 10.1 A Heating
Compressor TypeInverter Driven BLDC Rotary
Connection TypeFlared
Cooling BTU Rating15000
Cooling CFM Rating445 to 586
Cooling Operating Temperature14 to 115
Cooling Sound Level51
Correct Item GroupSingle Zone Outdoor Units
Drive TypeInverter
EER Rating12.95
FinishGalvanized/Powder-Coated
Frequency Rating60
Fuse Rating25
Heating BTU Rating15000
Heating CFM Rating445 to 586
Heating Operating Temperature-5 to 75
Heating Sound Level51
HSPF Rating10
IndustryHVAC
Liquid Line Size1/4
MaterialSteel
Number of Fan Speeds3
Overall Height25-1/8
Overall Length12-3/16
Overall Width34-5/8
Phase1
Power Rating1.8 kW Cooling, 2.3 kW Heating
Refrigerant TypeR-32
SEER Rating21.5
Suction Line Size1/2
Voltage Rating208 to 230
Additional Information
AHRI Certified|ENERGY STAR Certified|ETL Listed|UL 60335-2-40
Features & Benefits
- The outdoor unit shall provide 208/230V power to the indoor unit via 14 AWG X 3 interconnect power cable Interconnecting control wiring between the outdoor to indoor shall be 2-conductor/stranded copper/shielded cable between 18-16 AWG The outdoor unit shall be galvanized steel with a baked-on powder coated finish for durability The heat exchangers shall be mechanically bonded fin to copper tube The system shall utilize low-GWP R-32 refrigerant The compressor shall be hermetically sealed, inverter controlled, BLDC Rotary Refrigerant flow shall be controlled by an electronic expansion valve at the outdoor unit The indoor unit shall ship with a rechargeable, solar-cell wireless controller. The wireless controller battery shall be charged with a USB C cable or the integral solar panel The included wireless controller shall have a pixel display that is visible in low light conditions Dual set temperature support when connected to supported wired controllers The indoor unit shall include an integral humidity sensor for improved humidity control functions The indoor unit shall have a simple connection for condensate overflow detection devices or any normally closed contact for simple unit shutdown Samsung central control compatible (accessory required) External heat control functionality allows for configuration of fan operation during auxiliary heat operation, defrost, and emergency heat (MIM-B14U accessory required) External heat control configuration settings includes outside ambient external heat lockout, outside ambient compressor lockout, and time delay options (MIMB14U accessory required) Emergency heat functionality allows the system to continue controlling the external heat source even when system errors prevent the heat pump from operating (MIM-B14U accessory required) 7-segment digital display on front of unit to display temperature and unit status Washable main filter as standard accessible from the top of the unit System energy consumption can be viewed using the Samsung SmartThings mobile app or on the indoor unit display using the included wireless controller (conditions apply) AI (artificial intelligence) Auto Mode technology monitors factors such as indoor temperature, outdoor temperature, set temperature, and operating time to learn the patterns within your home to automatically adjust system operation to maximize occupant comfort and efficiency (Wi-Fi connection required)
