Samsung

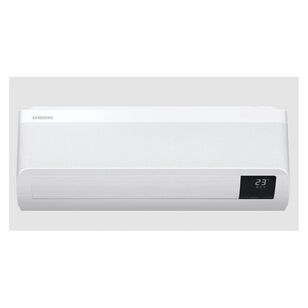

Samsung WindFree™ 2.0 DVM S Series AM024TNVDCH/AA Heat Pump Indoor Unit, 208 to 230 V, 0.4 A, 1 ph Phase, HIPS
Samsung
Samsung WindFree™ 2.0 DVM S Series AM024TNVDCH/AA Heat Pump Indoor Unit, 208 to 230 V, 0.4 A, 1 ph Phase, HIPS
MFG #AM024TNVDCH/AA
Item #1238003
Mfr. Part #AM024TNVDCH/AA
UPC #
Samsung Heat Pump Indoor Unit, DVM S Series, 208 to 230 V, 0.4 A, 60 W, 60 Hz, 1 ph, 3 Fan Speeds, 23200 Btu/hr Cooling, 23800 Btu/hr Heating, 466 to 593 cfm, 15 A Fuse Rating, 43 dBA Sound Level, Wall Mounting, HIPS, 8-7/16 in Overall Length, 41-1/2 in Overall Width, 11-3/4 in Overall Height, For Use With: DVM S Water and DVM S Eco Systems, Samsung DVM S, Additional Information: 5/8 in Gas Pipe Size, 3/8 in Liquid Pipe Size, R-410A Refrigerant Type
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$2,258.28 / ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandSamsung
Additional Information5/8 " Gas Pipe Size, 3/8 " Liquid Pipe Size, R-410A Refrigerant Type
Amperage Rating0.4
BTU Rating23200 Btu/hr Cooling, 23800 Btu/hr Heating
CFM Rating466 to 593
Correct Item GroupWall Mounted Indoor Units
Frequency Rating60
Fuse Rating15
MaterialHIPS
Mounting TypeWall
Number of Fan Speeds3
Overall Height11-3/4
Overall Length8-7/16
Overall Width41-1/2
Phase1
Power Rating60
SeriesDVM S Series
Sound Level43
Suitable For Use WithDVM S Water and DVM S Eco Systems, Samsung DVM S
Voltage Rating208 to 230
Additional Information
ETL Listed|UL 1995
Features & Benefits
- Compatible with Samsung DVM S, DVM S Water, and DVM S Eco systems (AM**********AA) Electro-static, washable, pleated filters as standard (included with unit) 7-segment digital display on front of unit to display temperature and unit status High-voltage terminal block temperature sensor to disable unit in the event overheating of power connection Wind-Free™ function will close the supply air outlet louver while in cooling mode to gently disperse cool air into the space without blowing directly onto occupants. The Wind-Free™ feature is optional and can be enabled using central or local control options (MWR-SH11UN, MWR-WE13UN, MWR-WG00*N, and AR-EH0*U only) HIPS chassis certified to UL94 V0 with galvanized steel mounting bracket The heat exchanger shall be mechanically bonded fin to copper tube Indoor fan is a single, antibacterial, crossflow type Three fan speed settings and auto settings Automatic (motorized) vertical swing (up/down) and horizontal swing (left/right) louvers The unit shall be operated via a wireless or wired remote control with DDC type signal The unit shall integrate with the Samsung NASA Controls Network Solution Controls shall integrate with a BMS system Control wiring shall be 2 X 16 AWG shielded wire
Documents
Marketing Information
Samsung's exclusive WindFree™ cooling technology provides users with a cool indoor climate without the discomfort of direct cold airflow. It's an advantage no other system can match.
