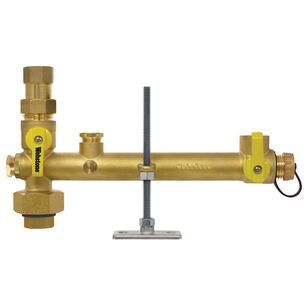

WEBSTONE H-42653W 3/4 LF VALVE
WEBSTONE H-42653W 3/4 LF VALVE
Webstone, H-42653W, Valve, Series: H-X265, 3/4 in Nominal, FIP Union x FIP x FIP x Hose End Style, 150 psi Pressure, 180 deg F, Full Port, Media: Water, Quarter Turn Handle Actuator, Stainless Steel Ball, Lead Free DZR Brass Body, PTFE Trim, EPDM Softgoods, 2.44 in H x 5.12 in W x 12.2 in L Dimensions, Import
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$209.40Â /Â ea
Out of Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandWebstone
Actuator TypeQuarter Turn Handle
Ball MaterialStainless Steel
Body MaterialLead Free DZR Brass
Dimensions2.44 " H x 5.12 " W x 12.2 " L
Domestic/ImportImport
End StyleFIP Union x FIP x FIP x Hose
IndustryPlumbing
MediaWater
Nominal Size3/4"
Port TypeFull
Pressure Rating150
SeriesH-X265
Softgoods MaterialEPDM
Temperature Rating180
Trim MaterialPTFE
Additional Information
NSF/ANSI 61 & 372
Features & Benefits
- Simplifies storage tank water heater installations Integrated valves isolate the water supply and expansion tank for service 1/2 in FIP cold water tapping for Water Heater Tempering Valve 1/2 in FIP port for installation of vacuum relief valve and 1/8 in plugged gauge port Compact version available if expansion tank is not required Saves 135 min, Replaces 16 Components, Eliminates 15 Leakpaths This valve is actuated by a blowout proof stem Double O-ring Stem Seals Models available to satisfy all state and federal low-lead laws Compatible with 3/4 in MIP expansion tanks up to 5 gal
Marketing Information
Pro-Pal Water Heater Supply Valve, w/ Expansion Tank Service, Full Port DZR Brass Ball w/ Union End, w/ 3/4 Expansion Tank Port & Hi-Flow Hose Drain, (3) Plugged FIP Ports (1/2, 1/2 & 1/8), Includes Mounting Hardware
