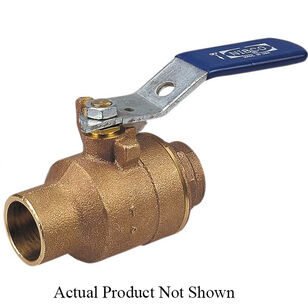

NIBCO S585-70-3/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO S585-70-3/4 BRZ BALL VALVE NOT FOR POTABLE USE
NIBCO® Ball Valve, 2-Piece, Series: S-585-70, 3/4 in Nominal, Solder, 600 psi, 400 deg F, Full Port, Media: Air/Gas/Water, 3/4 in Orifice, Standard Lever Handle Actuator, Polished Chrome Brass Ball, 3-1/4 in Inlet to Outlet Length, 2-1/4 in Top to Inlet Center, Bronze Body, Silicon Bronze Trim, PTFE, Domestic
Why Create an Account?
- Ability to track orders
- More Options & Savings
- Amazing Customer Service
$102.00 / ea
In Stock
- Attributes
- Additional Information
- Features & Benefits
- Documents
- Marketing Information
Attributes
BrandNIBCO®
Actuator TypeStandard Lever Handle
Ball MaterialPolished Chrome Brass
Body MaterialBronze
Domestic/ImportDomestic
End StyleSolder
IndustryPlumbing
Inlet to Outlet Length3-1/4
MediaAir/Gas/Water
Nominal Size3/4
Orifice Size3/4
Port TypeFull
Pressure Rating600
SeriesS-585-70
Softgoods MaterialPTFE
Temperature Rating400
Top to Inlet Center2-1/4
Trim MaterialSilicon Bronze Stem
Type2-Piece
Shipping Dimensions (L x W x H)17.75" x 13.75" x 11.13"
Additional Information
MSS SP-110|PROP65: This product can expose you to chemicals including Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
Features & Benefits
- Valve pressure rating 600 psi/41.4 bar non-shock cold working pressure Blowout-proof stem Dezincification resistant Maximum temperature rating 400 deg F Solder end connections
Documents
Marketing Information
The NIBCO® bronze Ball Valve provides ease of operation with quarter-turn (90 deg) open to close. The two-piece valve is ideal for commercial and light industrial process applications that may include HVAC, hot and cold domestic water, low pressure steam, compressed air, LP gas and natural gas. Please refer to NIBCO® technical data sheet, valve selection guides and catalog for engineering and installation information. Choose NIBCO® Ball Valves for the most specified, versatile and economical valve option in commercial, mechanical and industrial applications. NIBCO® Ball Valves are backed by the NIBCO® INC. 5 years 125% limited warranty.
NIBCO S585-70-3/4 BRZ BALL VALVE NOT FOR POTABLE USE
BrandNIBCO®
MFG #NJ83008
Keller #147164
